LATE C5 AND C6 INSTRUCTIONS

We designed our single pump secondary fuel system for both early and late models with ease of installation in mind. Our systems do not require dropping the tanks and complete drivetrain and will supply enough fuel for your 600 to 700 RWHP project. (We recommend our dual pump system for anything over 700 RWHP.) This can save 8 hours or more in labor costs alone.

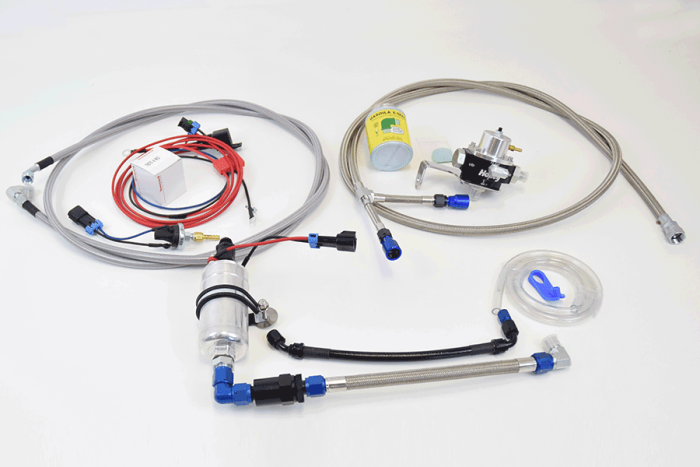

  • The system comes with preassembled stainless PTFE lines, a preassembled wire harness, an adjustable Hobbs switch, return regulator with polished mounting bracket, high capacity Bosch pump, pump mounting bracket, fuel line disconnect tool, drain hose to pump fuel from tank, filter and all necessary fittings. (For gasoline only. We recommend our Dual Pump system for use with E85.)
  • Our feed line snaps onto your factory fuel rail and factory fuel feed line with Russell quick connect fittings just like the OE lines. There is absolutely no fabrication of lines and fittings needed.
  • Both the fuel pressure and the boost level at which the pumps turn on are fully adjustable. We heat shrink all our connections, use Weather Pack style connectors and genuine Hobbs pressure switches for reliability.
  • This system is rated for 700 RWHP at 60 PSI. For horsepower levels above this, you can simply add our Fuel Pump Booster. The beauty of this system is that only the factory pump runs under most driving conditions. Running a secondary pump or dual in tank pumps full time only serves to heat up the fuel and cause its own set of problems. Those setups are also terribly annoying. Listening to a noisy fuel pump singing all the time will drive you nuts!
  • Our system is seamless and quiet. You’ll never hear the pump as it only comes on under boost, when it’s needed.
